Technical Update for Twin Series Cover Plates

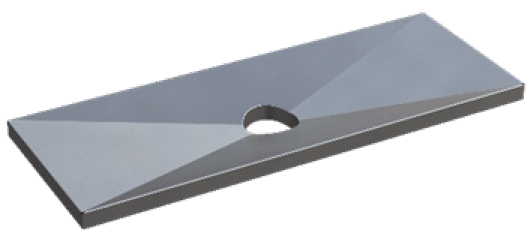

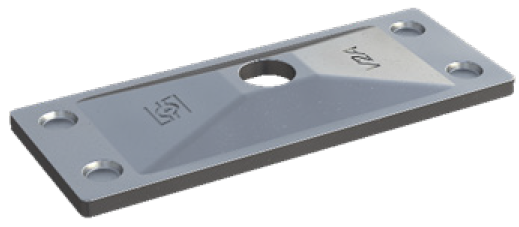

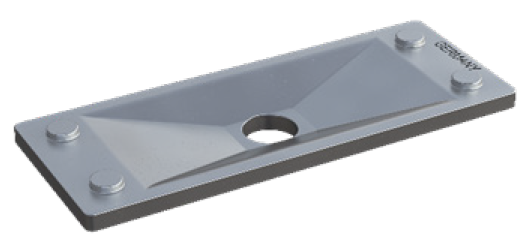

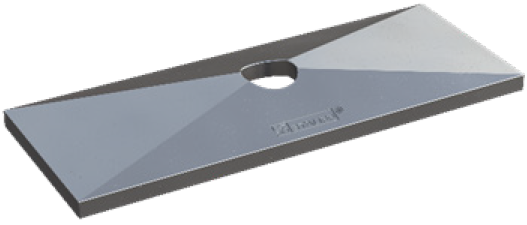

This Technical Update details the design change of cover plate type GD for our Twin Series Clamps according to DIN3015-3. With this design change, we will implement anti-rotation pins at the bottom of our GD cover plates. This new feature will not only improve the efficiency of assembly but will also prevent the plate from rotating during the assembly process. It will also help prevent the plate from rotating during operation, caused by vibration.

Important Notes:



• External dimensions do not change
• Item numbers (article codes) will also remain the same
• Description will be updated with a /2, for example: GD-2D-W3/2-N
• The previous version, without the anti-rotation pins, will no longer be available once stock is depleted

CAD Files

Crossover Information

STAUFF Clamps Catalog

Updated Cover Plate information can be found on page 68
