Computerised bending

UNISON Breeze 50

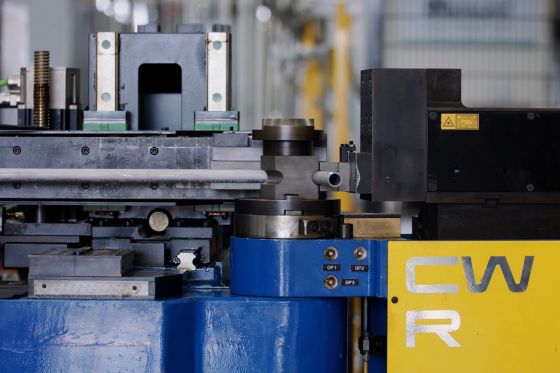

The Unison Breeze bending machine is a hi-tech fully automated electric CNC mandrel bender suitable for bending highly complex shapes utilising its multi-head function which minimises collisions during bending - all controlled by Unibend programming, OPT2SIM simulation software and Hexagon Absolute Arm.

• Capacity to 50.8 mm (2’’) O.D. tube minimum wall thickness 0.9 mm
• Tube length 6100 mm .
• Accuracy and repeatability between bends 0.1 mm / 0.05 mm
• Accuracy and repeatability degree of bend 0.1 deg / 0.05 deg
• Left hand bending for complex shapes
• All moving components are servo driven for accuracy and precision
• Multi stack head for multiple tube sizes

Additional bender equipment:

• Faro Arm wint portible WI-FI / Bluetooth
• Stauff Form Machine
• Various manual benders and tube-bending jigs

Tooling

A comprehensive range of 2 x D, 2.5 x D and 3 x D bend tools, ball and solid mandrels, wiper dies, custom-made tools, and bending jigs to suit metric and imperial O.D. tube and nominal bore NB pipe in various materials. Storage of prototypes is available for OEM customers.
